E3041 ORBITA Hotel RFID Lock
E3041 ORBITA Hotel RFID Lock
- Material:Stainless Steel,Moisture Proof,Fire Retardant
- Working Voltage：DC6V or 4 AA Alkaline batteries
- Low Voltage Alarm:＜4.8V
- Working Environment：-20℃~60℃
- Unlocking record：1680PCS
- Door Thickness：32-70mm
- Keycard Option：Mifare 1 card
- Size：L290mm x W60mm x H15mm

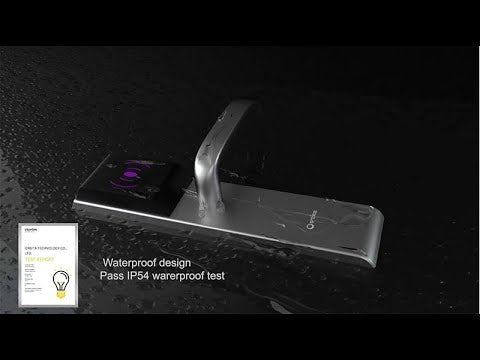

ORBITA E3041 Hotel Lock made of grade 304 stainless steel with a PVC card reader cover, with strong resistance to impact, corrosion and abrasion. The door lock PCB is waterproof with stable and reliable quality.

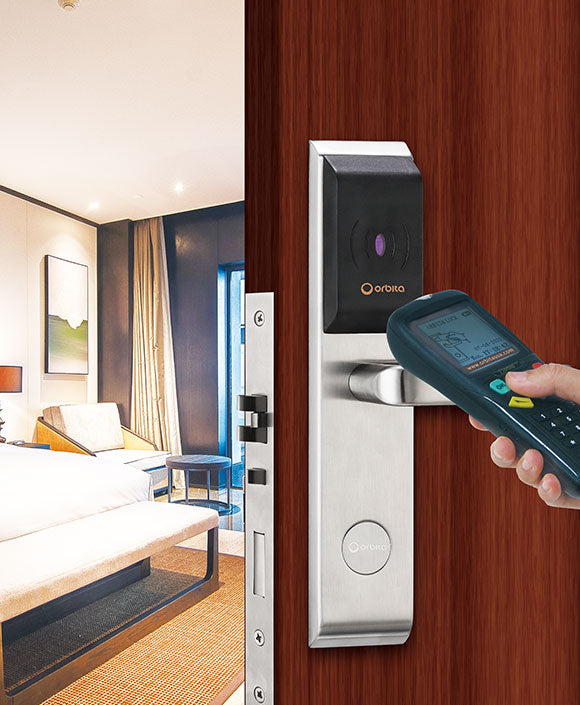

E3041 Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions. Certified by European CE and U.S. UL-10C, our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.
E3041 Lock can be used in hotels, hospitals, schools and apartments, which comes with Orbita management system to save time and costs.
Product Details
- Solid deadbolt
- Renovated clutch inside lock panels
- Standard 1680 events,optional 3360events

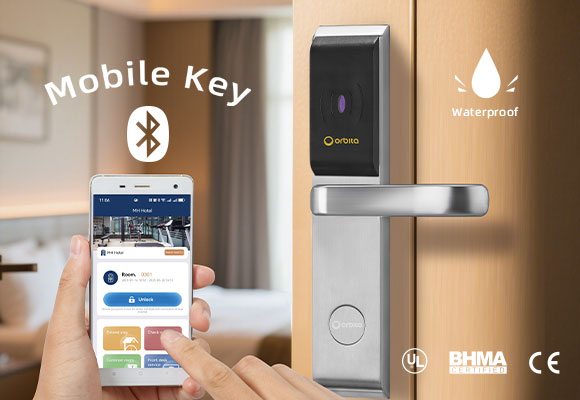

- Optinal Bluetooth & Wireless Online solution
- Interface with Opera or FIAS format PMS
- Passed the 180-minute fire test
Technical Details
Door Thickness: 5/4" (32mm) to 2（3/4 ）" (72mm) for standard product
- Operating Power: Quiescent current: <30 μA;
- dynamic current: < 200 mA
- Battery Life: last over one year
- Working Temperature: -20 ℃– 60℃;
- Relative Humidity: 20% – 90%
